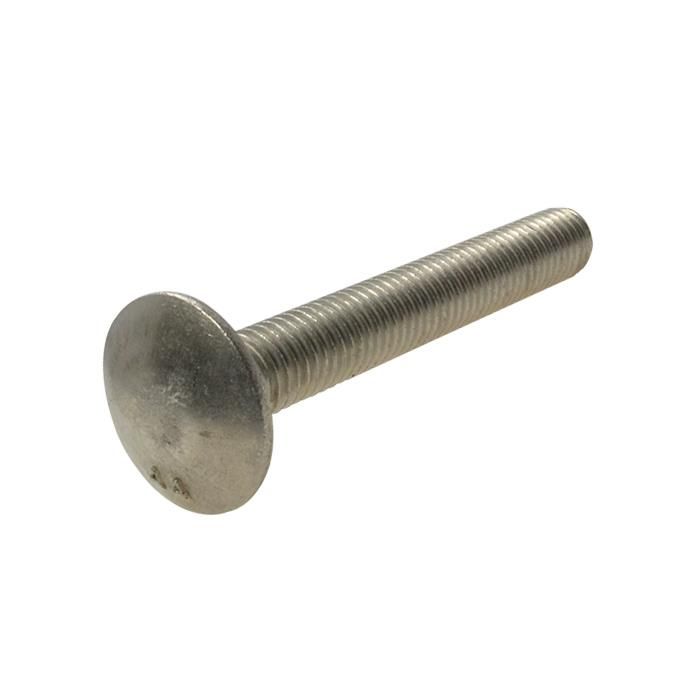

1/2" x 13 TPI UNC Coarse Cup Head Coach Bolt Stainless A2-70 G304 ANSI B18.5 / A2
Select a length below to view price
The “as low as price” is based on buying the largest pack qty and a cart value over $250
Remaining Qty:
In Stock
Sold Out
Other Sizes in Range
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| System of Measurement | Imperial |
|---|---|
| Product | Cup Head Bolt Only |
| Head Type | Cup Head |
| Size | 1/2" |
| Size & Thread Pitch | 1/2" x 13 TPI UNC |
| Thread Pitch | 13 TPI |
| Thread | Coarse |
| Thread Direction | Right Hand |
| Corrosion Protection Level | Excellent |
| Class Grade | A2-70 G304 |
| Material | Stainless Steel |
| Length (l) | Select from the dropdown |
| Thread Length (t) | Choose your length to view |
| Product Diameter (d) | 0.493 - 0.500" (12.53 - 12.70mm) |
| Head Diameter (a) | 1.032 - 1.094" (26.21 - 27.79mm) |
| Head Height (h) | 0.250 - 0.270" (6.35 - 6.86mm) |
| Square Under Head Width (as) | 0.492 - 0.515" |
| Square Under Head Height (s) | 0.250 - 0.281" |
| Closest size in mm | M12 (12mm) |
| Standard Made To | ANSI B18.5 / A2 |
| Brand | Hobson Engineering |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- Cup Head Coach Carriage Bolts are used to attach wood to wood or steel with a matching nut to clamp the materials together. The coach bolt has a low profile domed head and a square section under the head which resists turning when the nut is tightened or removed. The square section pulls into the wood as the nut on the other end is tightened, thus eliminating the need for a second spanner. Used to support structure, in timber framing, outdoor furniture, fencing and retaining walls, a common example is the seat and back slats of your garden bench and table furniture
- Material / Coating: Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is aesthetically pleasing to the eye and very practical because of its excellent corrosion protection in most environments. Most products can be identified by the following markings: A2, A2-70, 304 or G304. Stainless steels are largely non-magnetic but it is common for stainless steel fasteners to show a small degree of magnetism which is a result of work-hardening during the manufacturing process. Some of our stock have a smooth finish with no head markings if required, Test Certificates or Certificate of Conformity can be requested
- Grade v Class Difference: Metric fastenings are referred to as classes and imperial as grade. Both generally have head markings to determine grade and class. The markings on a stainless fastener indicate the grade of material and strength, e.g. material G304 grade will have one of the following markings: A2-70, G304, A2, 304 and G316 grade stainless will have one of the following: A4-70, G316, A4, 316. Some sizes do not have head markings, we have no control of this as it depends on the stock available at the time
- Thread Pitch (Imperial): TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, you simply count the number of threads contained within an inch of length. If the screw is less than an inch count upto ½” and x by 2
- Fastener Length: Is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, thread length, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, height, width, length you may require, always refer to the size in the description and additional specifications data provided prior to ordering
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Buy with confidence: ⇒ 11+ years experience selling online, > 22,000 stock lines, > 100 million pieces ex stock in Brisbane QLD
- Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
