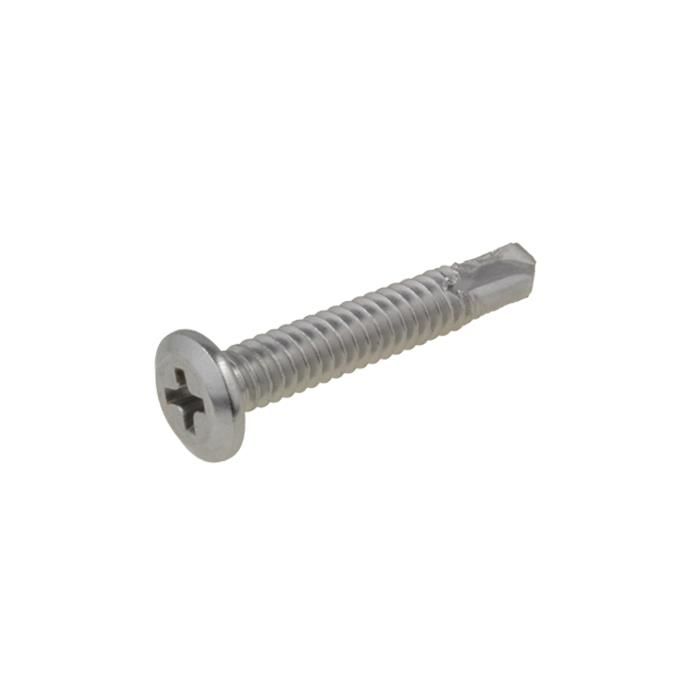

10g (4.80mm) G410 Stainless Wafer Phillips (PH2) Fine Metal Self Drilling Screws

Select a length below to view price

The “as low as price” is based on buying the largest pack qty and a cart value over $250

Remaining Qty:

In Stock

Sold Out

Length From Under The Head

No. of Screws

Remaining Qty:

- +

Min buy qty is:

Amount =

Select Add-Ons

PH2 x 50mm Hobson IMPAX Phillips Driver Bit ***Bundle Buy***

$2.50($2.50/ea)

PH2 x 50mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***

$4.00($4.00/ea)

PH2 x 100mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***

$7.00($7.00/ea)

Total amount =

Please select any of the option above and then proceed.

In Stock

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Matching Parts

Technical Specifications

Specs - Wafer Phillips Metal Self Drilling Screw Stainless G410.pdf

More Information
System of Measurement	Screw Gauge
Product	Self Drilling Metal Screw
Colour	Stainless
Head Type	Wafer Head
Size	10g (4.80mm)
Thread Pitch	24 TPI
Thread	Fine
Thread Direction	Right Hand
Corrosion Protection Level	Moderate
Internal or External	External
Class Grade	G410
Material	Stainless Steel
Product Diameter (d)	4.65 - 4.80mm
Head Diameter (a)	9.15 - 9.30mm
Screw Length (l)	Length measurement is from under head to end of drill point
Head Height (h)	1.80mm
Drill Point Length (p)	6.80mm
Min to Max Steel Thickness	1.20 - 3.50mm
Are they Magnetised?	Yes
Drive Size (as)	PH2
Screw Point	Drill Point
Drive Type	Phillips
Single Shear (kN)	6.0
Axial Tensile (kN)	11.2
Torsional (Nm)	9.1
Recommended Drill Speed	2500 rpm
Closest size in mm	4.80mm
Closest size in imperial	0.19"
Installation	For best results install using a DRILL driver. IMPACT drills are often too POWERFUL
Standard Made To	AS3566
Brand	Macsim

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Wafer Head Self Drilling Screws have a low profile rounded head with a flat underside giving optimal load bearing in situations where there is restricted head room eg, fastening of concealed clips. Commonly used to when fixing into metal. Self drilling point designed for driving into light gauge sheeting, cladding panels, sections and assemblies.
Installation: Install using a PH2 phillips driver bit in a cordless drill driver at a MAX speed of 2500 rpm. Whilst we know in most instances using an IMPACT driver does work it is recommended NOT to use an IMPACT driver due to the power, speed and drilling nature and action of an Impact drill.
Material / Coating: Excellent grade for self-drillng screws due to its hardness. It is a magnetic stainless steel, hardened by heat treatment (which grades G304 and G316 cannot be). For this reason, it has excellent drilling properties – however G410 has lower corrosion resistance than G304 and G316 and should not be used in highly or even moderately corrosive environments or tea-staining will result
Can Stainless corrode?: Stainless steel is corrosion-resistant but not corrosion-proof and corrosion can occur if the material is installed or handled incorrectly. The use of tools and drills made from conventional steel during the installation of stainless steel fasteners may also lead to problems. Even the hardest of tools can produce debris that leaves minute steel particles on the stainless steel fastener surfaces or in pre-drilled holes. It is these particles that often rust when exposed to moisture or oxygen and can result in a stained or tarnished finish to the stainless steel material
What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch measure ½” of an inch and multiply the number you counted by 2
Length of Thread: Always choose a self driller with enough threads to fully engage in the base metal. For attachments to 1/4" base steel, a self-drilling screw should have at least 1/4" of threads. It is helpful, but not critical, that the threads also engage in the material being fastened. The head of the fastener provides the bearing force for the material being fastened, while the threads provide the clamping force in the base material
Thread Length: Thread lengths have been included as a guide only. Due to stock being sourced from multiple suppliers variations do exist. We will always ship the same brand and thread length but subsequent orders may be another brand and the thread length may be different. If thread length is critical, please message us prior to ordering as we are happy to physically check our stock and advise prior to shipping
Drill Point Style: A twist drill style hardened point for fast driving into light gauge sheeting, cladding panels, sections and assemblies. The length of the drilling flutes determine the amount of drilling swaft that can be expelled and therefore the depth of metal can be drilled
Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, length, width, head style, visible stamped markings, appearance or actual finish
Photos: are of the product but may not be the actual diameter, length, thread length, colour you require, always refer to the size in the description and additional specifications data provided prior to ordering
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
