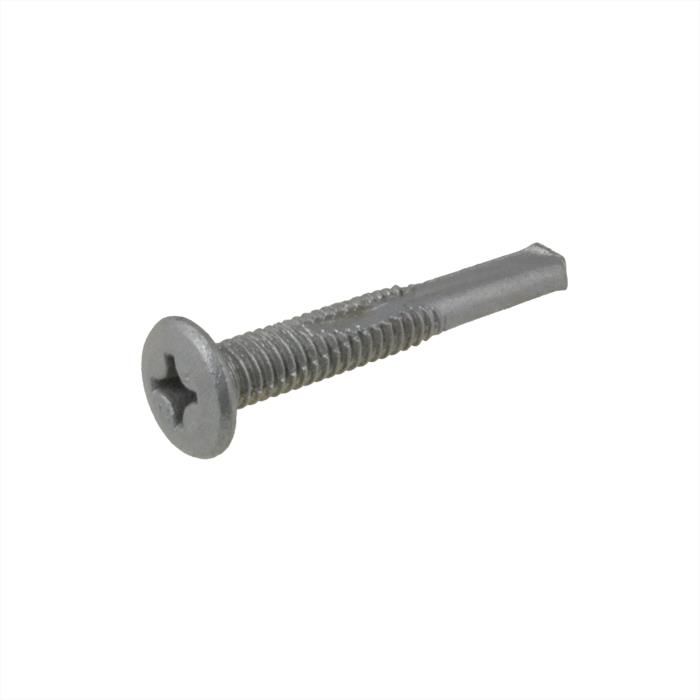

12g (5.50mm) Galvanised Wafer Phillips (PH3) Series 500 Fine Metal Self Drilling Screws

Select a length below to view price

The “as low as price” is based on buying the largest pack qty and a cart value over $250

Remaining Qty:

In Stock

Sold Out

Length From Under The Head

No. of Screws

Remaining Qty:

- +

Min buy qty is:

Amount =

Select Add-Ons

PH3 x 25mm Irwin Phillips Driver Bit***Clearance***

$0.30($0.30/ea)

PH3 x 25mm Irwin Phillips Driver Bit - Carded Pack Size 2***Clearance***

$0.30($0.30/ea)

Total amount =

Please select any of the option above and then proceed.

In Stock

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Matching Parts

Technical Specifications

Specs - Series 500 Wafer Phillips Self Drilling Fine Metal Screw Galvanised.pdf Hobson Screw Guide.pdf

More Information
System of Measurement	Screw Gauge
Product	Series 500 Self Drilling Metal Screw
Colour	Grey
Head Type	Wafer Head
Size	12g (5.50mm)
Thread Pitch	24 TPI
Thread	Fine
Thread Direction	Right Hand
Corrosion Protection Level	Excellent
Internal or External	External
Class Grade	Class 3 / 4
Material	Hardened Steel
Finish	Galvanised
Product Diameter (d)	5.30 - 5.40mm
Head Diameter (a)	11.00 - 11.20mm
Screw Length (l)	Length measurement is from under head to end of drill point
Head Height (h)	1.95 -2.05mm
Drill Point Length (p)	17.00mm
Min to Max Steel Thickness	3.00 - 12.00mm
Drive Size (as)	PH3
Screw Point	Drill Point
Drive Type	Phillips
Single Shear (kN)	8.9
Axial Tensile (kN)	16.0
Torsional (Nm)	13.3
Recommended Drill Speed	2500 rpm
Closest size in mm	5.50mm
Closest size in imperial	0.22"
Installation	For best results install using a DRILL driver. IMPACT drills are often too POWERFUL
Standard Made To	AS3566
Brand	Hobson Engineering
Alternative Brands	Bremick Fasteners

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Series 500 Wafer Head Self Drilling Screws have an extended drill point for drilling through steel up to 12mm by creating a hole. Commonly used for cladding and metal roofing, carports, sheds, garages and general construction when you need to drill into thicker than normal steel.
Installation: Install using a PH3 phillips driver bit in a cordless drill driver at a MAX speed of 2500 rpm. Whilst we know in most instances using an IMPACT driver does work it is recommended NOT to use an IMPACT driver due to the power, speed and drilling nature and action of an Impact drill.
Material / Coating: Galvanised coated fasteners have been used for roofing, cladding, steel buildings, trailers, bridges, fencing, power poles, outdoor furniture, house framing, fencing and marina’s for over 150 years. Since galvanising was first introduced, we have seen a lot of new terms like Class 3, Class 4, B8, Climaseal 3, Climaseal 4, Climaseal 5, Armour Ceramic Coating, Mechanical Galvanised and Ruspert. They are all variations of the original galvanise. All metal self drilling screws from Bolt and Nut Australia are guaranteed to comply to a minimum of Class 3 and extend to Class 4 and the ultimate of protection B8. Please refer to our technical pages for more information or contact us for advice on choosing the right fastener
What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch measure ½” of an inch and multiply the number you counted by 2
Length of Thread: Always choose a self driller with enough threads to fully engage in the base metal. For attachments to 1/4" base steel, a self-drilling screw should have at least 1/4" of threads. It is helpful, but not critical, that the threads also engage in the material being fastened. The head of the fastener provides the bearing force for the material being fastened, while the threads provide the clamping force in the base material
Thread Length: Thread lengths have been included as a guide only. Due to stock being sourced from multiple suppliers variations do exist. We will always ship the same brand and thread length but subsequent orders may be another brand and the thread length may be different. If thread length is critical, please message us prior to ordering as we are happy to physically check our stock and advise prior to shipping
Drill Point Style:Extended (no.5) series 500 point is designed for drilling through steel up to 12mm thick
How to measure the length of a Metal Screw: Fastener length is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, length, width, head style, visible stamped markings, appearance or actual finish
Photos: are of the product but may not be the actual diameter, length, thread length, colour you require, always refer to the size in the description and additional specifications data provided prior to ordering
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
