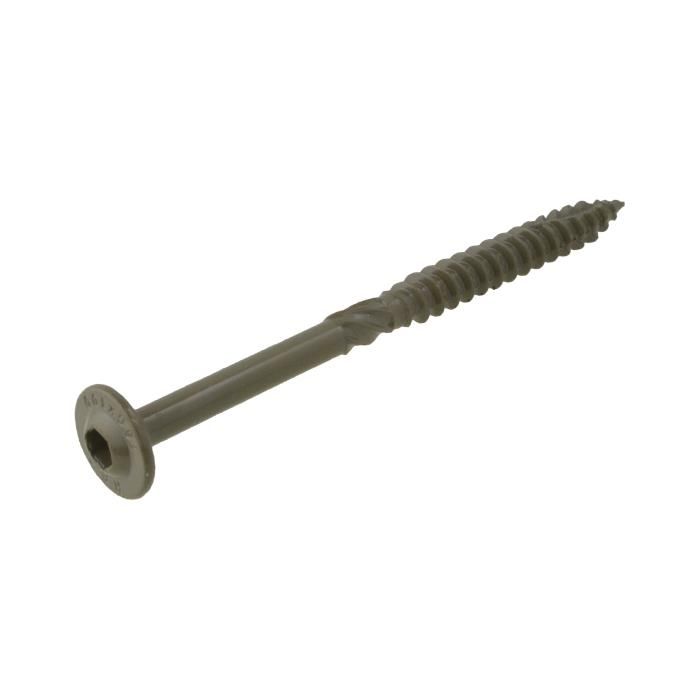

16g (6.80mm) Tykote Large Wafer Head Batten In/Hex (5mm) Timber Landscape T17 Screws Treated Pine
Select a length below to view price
The “as low as price” is based on buying the largest pack qty and a cart value over $250
Remaining Qty:
In Stock
Sold Out
Select Add-Ons
5mm x 50mm IMPACT Hex Driver Bit ***Bundle Buy***
$2.50($2.50/ea)
Total amount =
Please select any of the option above and then proceed.
In Stock
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| System of Measurement | Screw Gauge |
|---|---|
| Product | Batten Screws |
| Head Type | Button (Large Wafer) Head |
| Size | 16g (6.80mm) |
| Thread Pitch | 8 TPI |
| Thread | Coarse |
| Thread Direction | Right Hand |
| Corrosion Protection Level | Excellent |
| Internal or External | External |
| Class Grade | Tykote |
| Material | Hardened Steel |
| Finish | Tykote |
| Head Diameter (a) | 15.40 - 15.70mm |
| Head Height (h) | 3.60 - 3.80mm |
| Suitable For | Treated Pine |
| Drive Size (as) | 5mm |
| Screw Point | Type 17 (T17) |
| Drive Type | Internal Hex |
| Standard Made To | AS3566 |
| Brand | Hobson Engineering |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- Large Wafer Head Timber Construction Landscape Screwsare seriously big screws for all timbers including treated pine. They have a large than normal head diameter, coarse threads and bigger than standard body diameters compared to the traditional bugle batten screw. They are fast becoming the go to screw when screwing into heavy timber battens and stitching large sleepers together. Can be driven in without the need for pre-drilling making it them the perfect choice for the landscaper, builder and DIYer. Easy to use, can be installed using 5mm hex/Allen key or 5mm hex drive bit in a power tool. The special long sharp self drilling point with a flute (Type 17) that cuts the timber fibres as it is screwed in. Timber fibres are collected in the flute which help reduce the potential of timber splitting.
- Material / Coating: Tykote is a high-performance coating by Hobson Engineering which is specially formulated for resisting treated pine chemicals, it is not recommended for pool decking, marine decking or coastal environments
- What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch count ½” of an inch and multiply by 2
- How to measure the length of a Timber Screw: Fastener length is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
- Thread Length: have been included as a guide only. If thread length is critical, please message us prior to ordering as we are happy to physically check our stock and advise prior to shipping
- Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, length, thread length, colour you require, always refer to the size in the description and additional specifications data provided prior to ordering
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
