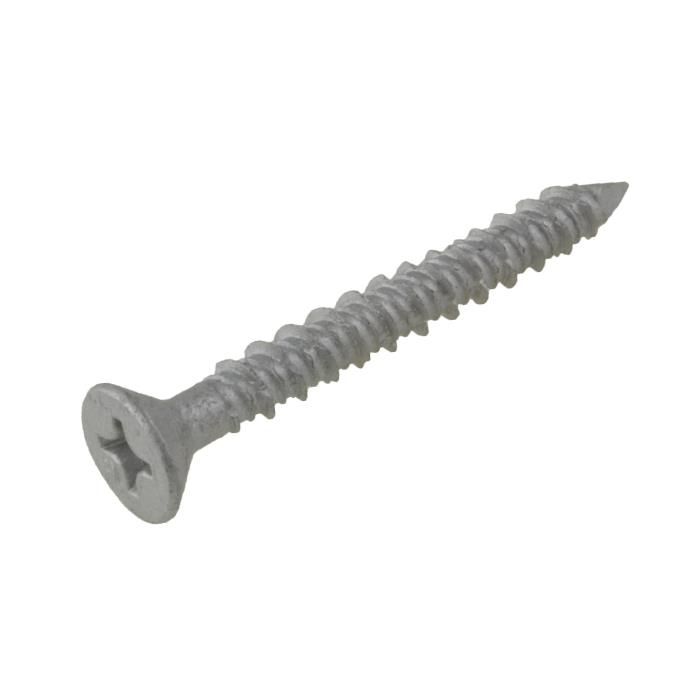

5mm x 32mm R1000 Silver Coating Countersunk Phillips (PH2) Self Tapping Concrete Screws
As low as
$0.085
/each
The “as low as price” is based on buying the largest pack qty and a cart value over $250
| BUY MORE. SAVE MORE. | ||||
|---|---|---|---|---|
| Price for each item | Subtotal | % savings | ||
| Buy 1 | Buy 1 | $6.00 each | $6.00 | - |
| Buy 2 + | Buy 2 - 4 | $3.50 each | $7.00 | 41.67% |
| Buy 5 + | Buy 5 - 9 | $1.80 each | $9.00 | 48.57% |
| Buy 10 + | Buy 10 - 19 | $1.10 each | $11.00 | 38.89% |
| Buy 20 + | Buy 20 - 29 | $0.65 each | $13.00 | 40.91% |
| Buy 30 + | Buy 30 - 49 | $0.50 each | $15.00 | 23.08% |
| Buy 50 + | Buy 50 - 74 | $0.36 each | $18.00 | 28.00% |
| Buy 75 + | Buy 75 - 99 | $0.26 each | $19.50 | 27.78% |
| Buy 100 + | Buy 100 - 199 | $0.22 each | $22.00 | 15.38% |
| Buy 200 + | Buy 200 - 499 | $0.20 each | $40.00 | 9.09% |
| Buy 500 + | Buy 500 - 999 | $0.17 each | $85.00 | 15.00% |
| Buy 1000 + | Buy 1000 - 1999 | $0.15 each | $150.00 | 11.76% |
| Buy 2000 + | Buy 2000 + | $0.10 each | $200.00 | 33.33% |
|
Savings % based on buy qty vs previous buy qty |
||||
| Show % Savings | ||||
SKU: 65TCC532R
In Stock
Select Add-Ons
4mm x 110mm x 50mm SDS Plus 2 Head Masonry Drill Bit ***Bundle Buy***
$8.00($8.00/ea)
4mm x 160mm x 100mm SDS Plus 2 Head Masonry Drill Bit ***Bundle Buy***
$10.00($10.00/ea)
Total amount =
Please select any of the option above and then proceed.
SKU: 65TCC532R
In Stock
Other Sizes in Range
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| Product | TX-Con / Tapcon / Grabcon |
|---|---|
| Head Type | Countersunk Head |
| Size | M5 (5mm) |
| Anchor Length (l) | 32mm |
| Corrosion Protection Level | Excellent |
| Internal or External | External |
| Class Grade | Low Tensile Class 5.8 |
| Material | Carbon Steel |
| Finish | R1000 Hours Silver Coating |
| Head Diameter (a) | 9.10 - 9.50mm |
| Head Height (h) | 3.80 - 4.20mm |
| Drive Size (as) | PH2 |
| Drive Type | Phillips |
| Pilot Drill Size | 5mm |
| Pre-Drilling | Masonry = Yes, Timber = No |
| Drill Hole Size | 4mm |
| Closest size in imperial | 3/16" |
| Brand | Hobson Engineering |
| Alternative Brands | Iccons |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- Self Tapping Concrete Screws are quick to install and fully removable. Countersunk head when a discrete or flush finish is desired. Ideal for light to medium duty applications into concrete, solid masonry, brick, block and stone
- Features / Benefits: The Gimlet point provides excellent bite into wood base materials, with no pre-drilling required. You will need to pre-drill a pilot hole into concrete, solid masonry, brick, block and stone. The anchor can be used in close spacing and edge distance applications
- Material / Coating: Ruspert R1000 Coating - 1000 hour salt spray rated. Superior to galvanising, it is a 3 layered high performance surface coating. It is incredibly hard and is perfect for thread cutting fasteners as normal galvanising simply peels or wears off during installation as the threads bite into the abrasive masonry. It's also completely resistant to acid and alkaline attack as well as galvanic corrosion, this means you can safely use them anywhere with any timber (treated or not) and any other metal or surface coated product with no cross contamination corrosion issues
- Fastener length: is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you do see a problem please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, height, width, length you may require, always refer to the size in the description and additional specifications data provided prior to ordering
- PDF data sheets: The attached PDF data sheets has additional technical specifications and "how to" diagrams which we find to be helpful as reference material. Although provided by one of our suppliers, the brand supplied may be different. If brand is critical, please refer to the technical specification tab to see our supplier list or contact us prior to ordering. As we are always updating and adding new lines to our site the data sheet may not include every item we stock or have items that are currently not on our site. If there is something you need and you can’t find it, please contact us for price and availability
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Updating our site: If you see any problems with any of our Technical specifications or you require additional information please contact us
- Buy with confidence: ⇒ 13+ years experience selling online, > 23,000 stock lines, > 120 million pieces ex stock in Brisbane QLD
- Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
