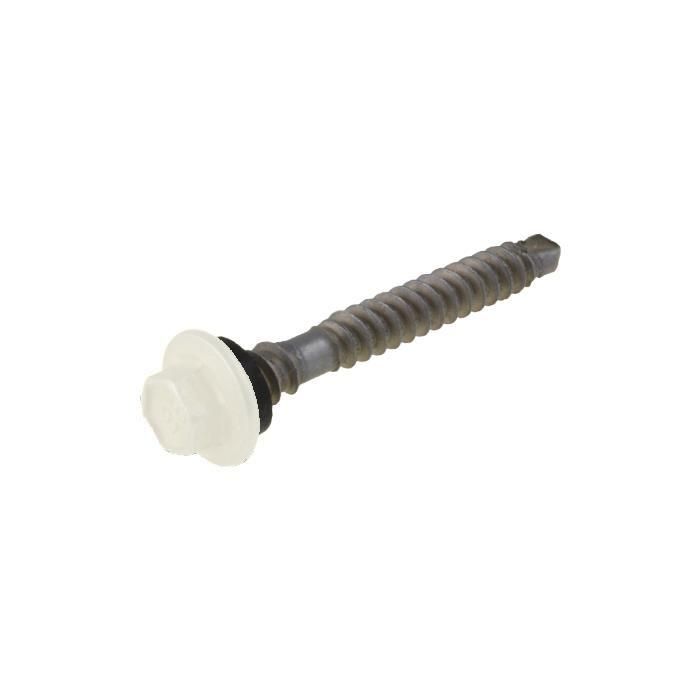

6.20mm x 50mm BREMICK Vortex Plus NEO Surfmist Hex Flange (5/16") Metal or Timber Top Grip Roofing Screw Galvanised B8® Cat 5

As low as $0.136 /each

The “as low as price” is based on buying the largest pack qty and a cart value over $250

BUY MORE. SAVE MORE.
	Price for each item	Subtotal	% savings
Buy 5 +	Buy 5 - 9	$1.20 each	$6.00	80.00%
Buy 10 +	Buy 10 - 19	$0.90 each	$9.00	25.00%
Buy 20 +	Buy 20 - 49	$0.75 each	$15.00	16.67%
Buy 50 +	Buy 50 - 99	$0.70 each	$35.00	6.67%
Buy 100 +	Buy 100 - 199	$0.46 each	$46.00	34.29%
Buy 200 +	Buy 200 - 499	$0.34 each	$68.00	26.09%
Buy 500 +	Buy 500 - 999	$0.28 each	$140.00	17.65%
Buy 1000 +	Buy 1000 - 2999	$0.20 each	$200.00	28.57%
Buy 3000 +	Buy 3000 - 4999	$0.19 each	$570.00	5.00%
Buy 5000 +	Buy 5000 - 9999	$0.17 each	$850.00	10.53%
Buy 10000 +	Buy 10000 +	$0.16 each	$1,600.00	5.88%
Savings % based on buy qty vs previous buy qty
Show % Savings

SKU: 08VUR621350B8NSU

In Stock

Select Add-Ons

5/16" x 65mm Alpha ThunderMAX Impact Nutsetter Driver Bit ***Bundle Buy***

$10.00($10.00/ea)

Handipak of 5 - 5/16" x 65mm Alpha ThunderMAX Impact Nutsetter Driver Bit ***Bundle Buy***

$25.00($25.00/ea)

Total amount =

Please select any of the option above and then proceed.

SKU: 08VUR621350B8NSU

In Stock

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Matching Parts

Technical Specifications

Specs - Painted Vortex Plus Hex Self Drilling Roofing Screw Galvanised B8 Cat 5.pdf BREMICK Roofing.pdf

More Information
System of Measurement	Screw Gauge
Product	Vortex Roofing Screw
Heads Painted	Yes
Colour	Surfmist / Off White / Titanium
Head Type	Hex Flange Head
Size	M6.2 (6.2mm)
Thread Pitch	10 TPI
Thread	Coarse
Thread Direction	Right Hand
Corrosion Protection Level	Ultimate
Internal or External	External
Class Grade	B8® Cat 5
Material	Hardened Steel
Finish	Revolution B8® Coating
Length (l)	53mm
NEO Sealing Washer	Small Rubber Washer
Product Diameter (d)	6.20 - 6.40mm
Head Diameter (a)	24.50 - 25.50mm
Screw Length (l)	Length measurement is from under head to end of drill point
Head Height (h)	6.40mm
Drill Point Length (p)	8.80mm
Min to Max Steel Thickness	upto to 1.50mm
Drive Size (as)	5/16"
Screw Point	Universal Point
Drive Type	Hex
Closest size in mm	6.30mm
Closest size in imperial	0.25"
Material Application	Metal or Soft Timbers upto 1.50mm
Also Known As	Roofzip®, Vmax, Roof Stars
Standard Made To	AS3566
Brand	Bremick Fasteners

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

An Universal drilling point screw for fastening the crest of corrugated or square Rib roof sheeting to metal battens, steel purlins up to 1.5mm or timber. They can also be used to replace existing 12g top grip screws.
Features / Benefits:
- Drills Faster Lasts Longer Revolution B8 coating for Extreme Corrosion Protection
- Higher Profile Head offer greater engagement and hex socket stability
- New UltraSeal patent pending prevents water spew from overd driving ensuringa water tight seal
- New Vortex universal point with thread to point technology meaning faster starting, no skidding, and stable installation into timber or metal up to 1.5mm
- One step fastening of Corrugated & Trapezoidal roof sheeting
- Suits roof profile heights from 16mm to 30mm, available in lengths 50mm to 65mm
- Full range of painted screws available in COLORBOND® Steel colours
- Fully warranted for ISO 9223 Category 5 - Very Severe Environments. Suitable for use in ACQ & CCA treated timber
Also known as: Bremick Fasteners Vortex, Hobson Engineering VMAX, Buildex Fasteners Roofzip®
Material / Coating: Bremick Revolution B8 Galvanised coating has 8x the hardness of Class 4 coating and is suitable for use in very severe marine environments (ISO 9223 Category 5). Please refer to our technical pages for more information or contact us for advice on choosing the right fastener
Length of Thread: Always choose a self driller with enough threads to fully engage in the base metal. For attachments to 1/4" base steel, a self-drilling screw should have at least 1/4" of threads. It is helpful, but not critical, that the threads also engage in the material being fastened. The head of the fastener provides the bearing force for the material being fastened, while the threads provide the clamping force in the base material
Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Differences may exist between batches such as head height, overall screw length, visible stamped markings or actual finish
Photos: Are of the product but may not be the actual length or length you are ordering, always refer to the size in the description and additional specifications data provided prior to ordering
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
