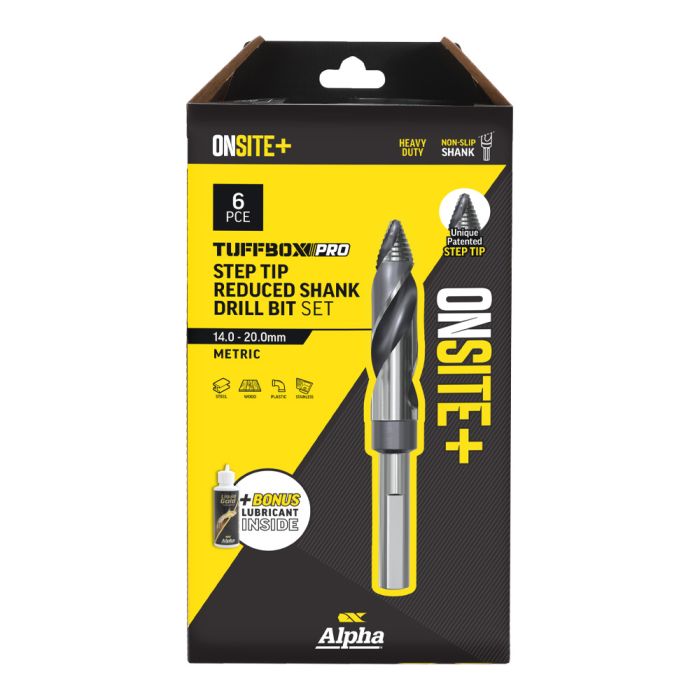

6 Pce Alpha ONSITE+ Step Tip Reduced Shank Drill Bit Set - SM6STRTP-B
| BUY MORE. SAVE MORE. | ||||
|---|---|---|---|---|
| Price for each item | Subtotal | % savings | ||
| Buy 1 | Buy 1 | $399.00 each | $399.00 | - |
| Buy 2 + | Buy 2 - 4 | $397.00 each | $794.00 | 0.50% |
| Buy 5 + | Buy 5 + | $395.00 each | $1,975.00 | 0.50% |
|
Savings % based on buy qty vs previous buy qty |
||||
| Show % Savings | ||||
In Stock
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
5% Off
10% Off
15% Off
| System of Measurement | Metric |
|---|---|
| Product | ONSITE+ Step Tip Reduced Shank Drill Bit Set |
| Shank (h) | 3 Flat Shank |
| Size | Set |
| Material | M2 High Speed Steel |
| Coating | Black Oxide Treatment |
| Drill Chuck Size | 12.7mm Non-Slip Shank |
| Maximum Cutting Depth (d) | 3x Depth |
| Suitable For | Steel,Stainless Steel,Wood & Plastic |
| Point | 135° Split Point |
| Step Tip | Unique Patented Tip eliminates pre-drilling |
| Number of Pieces | 6 Piece |
| Unique Features | 6x FASTER than the benchmark competitor |
| Installation | Power & Pedestal Drills |
| Packaging | Tuffbox Pro |
| Brand | Alpha |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- Alpha ONSITE+ Step Tip 6 Piece Reduced Shank Drill Bit Set starts at 14mm, and includes 15, 16, 18, 19 and 20mm. Designed and test proven to drill hundreds of holes in half the time of a regular reduced shank drill bit. designed and test proven to drill hundreds of holes in half the time of a regular reduced shank drill bit. To prove its efficiency, we teamed up with seasoned tradies, Scott and Monique from Barry’s Metalworks, and compared two reduced shank drill bits: a standard market model and our new Onsite+ Step Tip Reduced Shank Drill Bit.
“My wife, Monique, is the drill press operator, and she will sing from the hilltops if you can reduce her time spent drilling,” Scott said.
The standard reduced shank drill bit took 1 minute and 20 seconds to drill one hole. Multiply that across all 600 holes, and you’re looking at an average of 13 hours and 20 minutes. Time that doesn’t take into account for user fatigue, drill wear, or burnout, which would further increase the drill period.
With our Onsite+ Step Tip Reduced Shank Drill Bit, one hole took 30 seconds—a 50-second time difference. That brings the job down to an average of 5 hours for all 600 holes, cutting it to just over half a day of work!
- Features / Benefits:
- The unique and patented step tip design reduces heat & stays sharper for longer with no jamming or binding
- No Pre-drilling needed - Patented Step Tip design eliminates the need to pre-drill a pilot hole
- Black Oxide treatment maximises lubricant hold, therefore assisting chip flow & heat dissipation
- The 135-degree split point cuts faster and reduces wander
- Ideal for steel, wood, plastic & stainless steel
- Easy to control when drilling at high speed with effortless cutting
- 3-Flat shank prevents slippage in chuck
- 12.7mm non-slip shank
- Cutting Fluid: When drilling into ferrous metals we recommend the use of a cutting fluid or compound to aid in the efficiency of the drill and to prolong its working life. We recommend Alpha CDT cutting fluid (Code ATL005)
- Specifications: Every effort has been made to ensure all specifications on our site are accurate and to the relevant standard, they should only be used as a guide. If you see any problems or wish to query something, please contact us
- Additional Information: Click on the data sheet tab for a PDF with additional information
- Photos: All photos are for illustration purpose only. Actual product or packaging may vary due to product enhancement
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Buy with confidence: ⇒ 13+ years experience selling online, > 23,000 stock lines, > 120 million pieces ex stock in Brisbane QLD
- Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
