M24 x 3.00p Metric Coarse Galvanised K0 Structural High Tensile HSFG Bolt / Nut / Washer AS1252:2016
Select a length below to view price
The “as low as price” is based on buying the largest pack qty and a cart value over $250
Remaining Qty:
In Stock
Sold Out
Other Sizes in Range
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| System of Measurement | Metric |
|---|---|
| Product | Structural K0 Bolt & Nut & Washer |
| Head Type | Hex Head |
| Size | M24 (24mm) |
| Size & Thread Pitch | M24 x 3.00p Coarse |
| Thread Pitch | 3.00mm |
| Thread | Coarse |
| Thread Direction | Right Hand |
| Corrosion Protection Level | Excellent |
| Class Grade | High Tensile Class 8.8 |
| Material | Carbon Steel |
| Finish | Galvanised |
| Nuts Included | Yes |
| Length (l) | Select from the dropdown |
| Thread Length (t) | Choose your length to view |
| Product Diameter (d) | 23.67 - 24.00mm |
| Across Flats (af) | 40.54 - 41.00mm |
| Across Corners (ac) | 47.34mm |
| Head Height (h) | 15.00 - 16.00mm |
| Nut Height (n) | 24.20mm |
| Spanner Size (af) | 41mm |
| Drive Type | Hex |
| Minimum Bolt Tension (kN) | 210.0 |
| Closest size in imperial | 1" |
| Standard Made To | AS1252:2016 K0 |
| Brand | Hobson Engineering |
| Alternative Brands | Bremick Fasteners | Brighton Best |
Dimensional data is a guide only. Tolerance differences exist between brands and batches

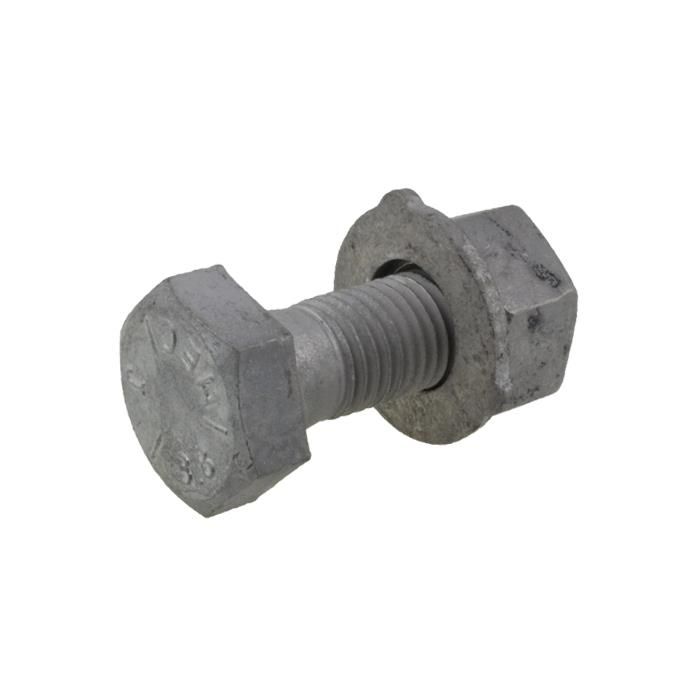

- K0 Structural HSFG Bolt & Nut and Washer are a preassembled heavy duty high tensile bolt / nut / washer combo used in the building and construction industries to fasten steel to steel and steel building frameworks. We only stock the new premium range of K0 AS1252:2016 structural bolts / nuts and washers with K0 Quality Assurance documentation available online.
- Identification of a K0 Structural Assembly: The head of the bolt will have the following: 3 straight lines at approx 2pm, 6pm and 10pm, 8.8 indicating the strength as class 8.8 high tensile, manufacturers mark like HEC (Hobson Engineering Company) and an Unique Trace Code. The structural nut is a deeper nut than a standard nut and the washer has 3 dimples (nibs) on the outside which identifies the washer as a structural washer
- Material / Coating: Galvanised coating is a dull greyish colour, has a slight wax and can also be a little rough in appearance. Used mainly outdoors because of its superior corrosion resistance and proven longevity. Also known as HDG, it is one of the best coatings for protection against rust. Galvanised fasteners have been used across many industries in Australia for over 150 years, roofing, steel buildings, trailers, bridges, fencing, power poles and marina construction
- Thread Pitch (Metric): Pitch means the distance between the peaks of two threads along a screw, bolt, or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm. Always buy nuts with the same thread pitch to ensure compability
- Fastener Length: Is measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, height, width, length you may require, always refer to the size in the description and additional specifications data provided prior to ordering
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
- Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
