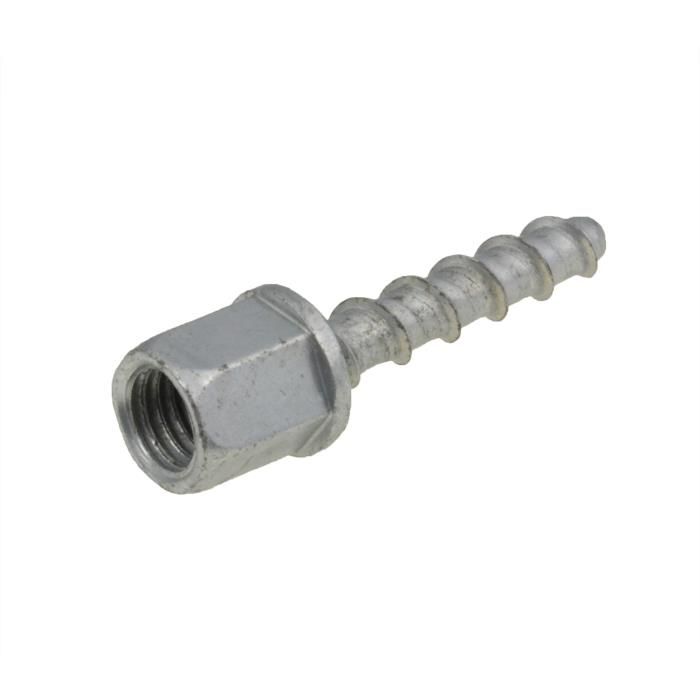

M10 x 38mm Zinc Plated Vertical Hanger Xbolt Screwbolt Anchors
As low as
$0.808
/each
The “as low as price” is based on buying the largest pack qty and a cart value over $250
| BUY MORE. SAVE MORE. | ||||
|---|---|---|---|---|
| Price for each item | Subtotal | % savings | ||
| Buy 1 | Buy 1 | $7.00 each | $7.00 | - |
| Buy 2 + | Buy 2 - 4 | $5.50 each | $11.00 | 21.43% |
| Buy 5 + | Buy 5 - 9 | $3.00 each | $15.00 | 45.45% |
| Buy 10 + | Buy 10 - 19 | $1.90 each | $19.00 | 36.67% |
| Buy 20 + | Buy 20 - 29 | $1.80 each | $36.00 | 5.26% |
| Buy 30 + | Buy 30 - 49 | $1.67 each | $50.10 | 7.22% |
| Buy 50 + | Buy 50 - 74 | $1.32 each | $66.00 | 20.96% |
| Buy 75 + | Buy 75 - 99 | $1.24 each | $93.00 | 6.06% |
| Buy 100 + | Buy 100 - 199 | $1.23 each | $123.00 | 0.81% |
| Buy 200 + | Buy 200 - 499 | $1.11 each | $222.00 | 9.76% |
| Buy 500 + | Buy 500 + | $0.95 each | $475.00 | 14.41% |
|
Savings % based on buy qty vs previous buy qty |
||||
| Show % Savings | ||||
SKU: 65SBV1038
In Stock
Select Add-Ons
6mm x 160mm x 100mm SDS Plus 2 Head Masonry Drill Bit ***Bundle Buy***
$8.00($8.00/ea)
Total amount =
Please select any of the option above and then proceed.
SKU: 65SBV1038
In Stock
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| Product | Vertical Hanger Screw Anchor |
|---|---|
| Head Type | Vertical Hanger |
| Size | M10 (10mm) |
| Size & Thread Pitch | M10 x 1.50p Coarse |
| Bolt Diameter x Pitch | M10 x 1.50p Coarse |
| Corrosion Protection Level | Moderate |
| Internal or External | Internal |
| Class Grade | Low Tensile Class 5.8 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Diameter (a) | 16.00mm |
| Head Height (h) | 15.00 - 15.20mm |
| Spanner Size (af) | 13mm |
| Drive Type | Hex |
| Drill Hole Size | 6mm |
| Minimum Spacing | 50mm |
| Minimum Edge Distance | 40mm |
| Minimum Embedment Depth | 38mm |
| Brand | Hobson Engineering |
| Alternative Brands | Iccons |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- Vertical Hanger Xbolt Screwbolt Anchors has an internal M10 thread to facilitate M10 threaded rod. Used for mechnical, electrical and pipe hanger applications.
- Features / Benefits: Serrated flange head for better fixture grip. heat treated carbon steel. Tapered end for easier insertion to the hole. No expansion forces. Suitable for small anchoring spacing and edge distance applications. Can be installed into base materials such as concrete, block, brick, timber, marble, and stone, just to name a few. Removable making it ideal for temporary applications
- Material / Coating: The screw is Zinc Plated, the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. Whilst some people use it externally it isnt recommended if corrosion is a concern
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you do see a problem please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, height, width, length you may require, always refer to the size in the description and additional specifications data provided prior to ordering
- PDF data sheet: The attached PDF data sheet has additional technical specifications and "how to" diagrams which we find to be helpful as reference material. Although provided by one of our suppliers, the brand supplied may be different. If brand is critical, please refer to the technical specification tab to see our supplier list or contact us prior to ordering. As we are always updating and adding new lines to our site the data sheet may not include every item we stock or have items that are currently not on our site. If there is something you need and you can’t find it, please contact us for price and availability
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
- Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
