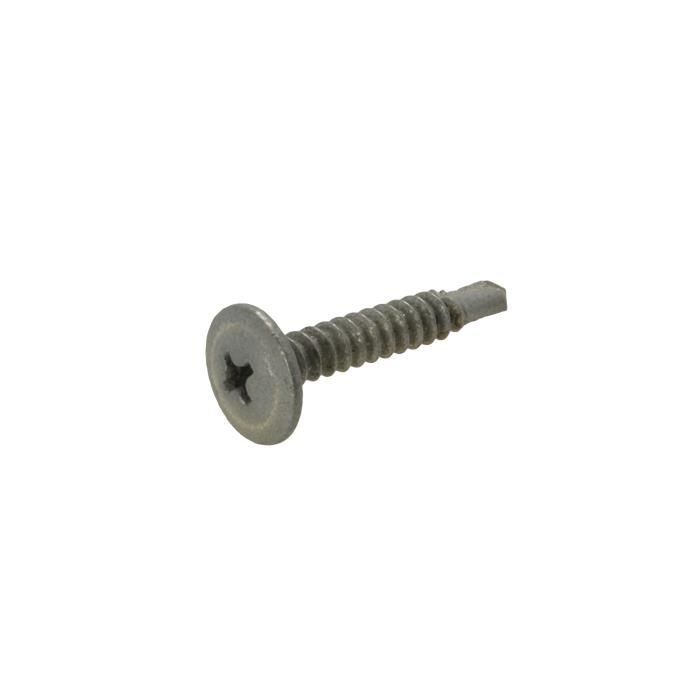

8g (4.20mm) Galvanised Button Phillips (PH2) Coarse Metal Self Drilling Screws
Select a length below to view price
The “as low as price” is based on buying the largest pack qty and a cart value over $250
Remaining Qty:
In Stock
Sold Out
Select Add-Ons
PH2 x 50mm Hobson IMPAX Phillips Driver Bit ***Bundle Buy***
$2.50($2.50/ea)
PH2 x 50mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***
$4.00($4.00/ea)
PH2 x 100mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***
$7.00($7.00/ea)
Total amount =
Please select any of the option above and then proceed.
In Stock
Other Sizes in Range
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| System of Measurement | Screw Gauge |
|---|---|
| Product | Self Drilling Metal Screw |
| Colour | Grey |
| Head Type | Button (Large Wafer) Head |
| Size | 8g (4.20mm) |
| Thread Pitch | 18 TPI |
| Thread | Coarse |
| Thread Direction | Right Hand |
| Corrosion Protection Level | Excellent |
| Internal or External | External |
| Class Grade | Class 3 / 4 |
| Material | Hardened Steel |
| Finish | Galvanised |
| Product Diameter (d) | 4.00 - 4.20mm |
| Head Diameter (a) | 10.70 - 11.00mm |
| Screw Length (l) | Length measurement is from under head to end of drill point |
| Head Height (h) | 2.00mm |
| Drill Point Length (p) | 5.40mm |
| Min to Max Steel Thickness | 0.75 - 2.50mm |
| Drive Size (as) | PH2 |
| Screw Point | Drill Point |
| Drive Type | Phillips |
| Single Shear (kN) | 5.8 |
| Axial Tensile (kN) | 6.5 |
| Torsional (Nm) | 5.9 |
| Recommended Drill Speed | Under 3000 rpm |
| Standard Made To | AS3566 |
| Brand | Hobson Engineering |
| Alternative Brands | Tower | Bremick Fasteners |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- Button Head Self Drilling Screws have a very low profile and large diameter head with a flat underside. The low profile head permits overlaying of board and plasterboard without affecting seating. Also used for fascia brackets clips to rafters and conduit clips to steel.
- Easy to install with a PH2 Phillips screwdriver or PH2 Phillips Driver Bit in a power tool.
- Material / Coating: Galvanised coated fasteners have been used for roofing, cladding, steel buildings, trailers, bridges, fencing, power poles, outdoor furniture, house framing, fencing and marina’s for over 150 years. Since galvanising was first introduced, we have seen a lot of new terms like Class 3, Class 4, B8, Climaseal 3, Climaseal 4, Climaseal 5, Armour Ceramic Coating, Mechanical Galvanised and Ruspert. They are all variations of the original galvanise. All metal self drilling screws from Bolt and Nut Australia are guaranteed to comply to a minimum of Class 3 and extend to Class 4 and the ultimate of protection B8. Please refer to our technical pages for more information or contact us for advice on choosing the right fastener
- What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch count ½” of an inch and multiply by 2
- Length of Thread: Always choose a self driller with enough threads to fully engage in the base metal. For attachments to 1/4" base steel, a self-drilling screw should have at least 1/4" of threads. It is helpful, but not critical, that the threads also engage in the material being fastened. The head of the fastener provides the bearing force for the material being fastened, while the threads provide the clamping force in the base material
- Thread Length: Thread lengths have been included as a guide only. Due to stock being sourced from multiple suppliers variations do exist. We will always ship the same brand and thread length but subsequent orders may be another brand and the thread length may be different. If thread length is critical, please message us prior to ordering as we are happy to physically check our stock and advise prior to shipping
- Drill Point Style: A twist drill style hardened point for fast driving into light gauge sheeting, cladding panels, sections and assemblies. The length of the drilling flutes determine the amount of drilling swaft that can be expelled and therefore the depth of metal can be drilled
- How to measure the length of a Metal Screw: Fastener length is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
- Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, length, thread length, colour you require, always refer to the size in the description and additional specifications data provided prior to ordering
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
- Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
