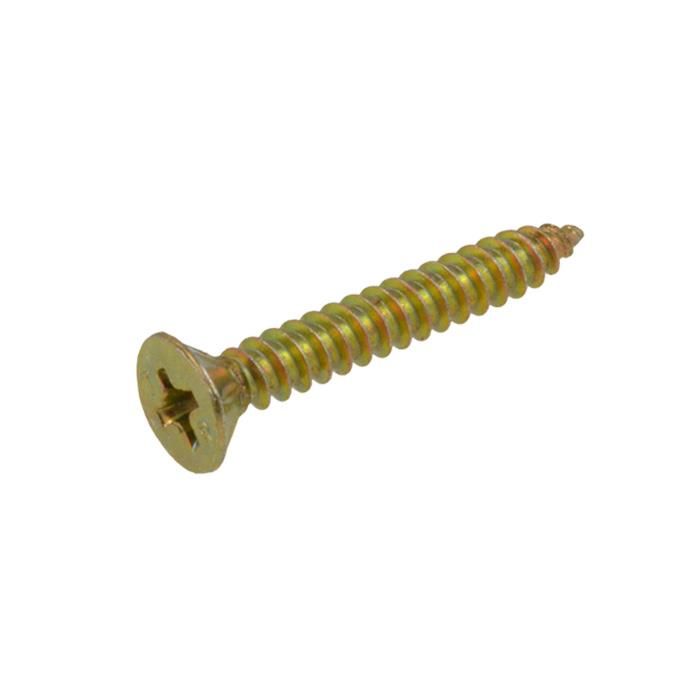

8g (4.20mm) Zinc Yellow Countersunk (PH2) Coarse Villaboard Timber Screws

Select a length below to view price

The “as low as price” is based on buying the largest pack qty and a cart value over $250

Remaining Qty:

In Stock

Sold Out

Length Overall Including Head

No. of Screws

Remaining Qty:

- +

Min buy qty is:

Amount =

Select Add-Ons

PH2 x 50mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***

$4.00($4.00/ea)

PH2 x 100mm Alpha ThunderMAX Phillips Driver Bit ***Bundle Buy***

$7.00($7.00/ea)

Total amount =

Please select any of the option above and then proceed.

In Stock

Other Sizes in Range

8g Galvanised

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Matching Parts

Technical Specifications

Specs - Villaboard Countersunk Phillips Screw Zinc Yellow.pdf

More Information
System of Measurement	Screw Gauge
Product	Villaboard Screw
Head Type	Countersunk Head Ribbed
Nibbed	Yes
Underside of Head	Self Countersinking
Size	8g (4.20mm)
Thread Pitch	18 TPI
Thread	Coarse
Thread Direction	Right Hand
Corrosion Protection Level	Moderate
Internal or External	Internal
Class Grade	Class 2
Material	Carbon Steel SAE 1022
Finish	Zinc Yellow
Product Diameter (d)	4.00 - 4.20mm
Head Diameter (a)	7.90 - 8.10mm
Screw Length (l)	Overall length measurement includes head, thread and drill point
Head Height (h)	3.20 - 3.40mm
Min to Max Steel Thickness	up to 0.75mm
Drive Size (as)	PH2
Screw Point	Needle Point
Drive Type	Phillips
Recommended Drill Speed	2500
Closest size in mm	4.20mm
Closest size in imperial	0.17"
Standard Made To	AS3566
Brand	Tower
Alternative Brands	Iccons

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Villaboard Screws are self embedding and designed for fixing fibre cement sheeting to thin gauge steel substrates (up to 0.75mm thick) and timber framing. The ribbed underside of the head allows the screw to easily countersink without mushrooming the fibre cement sheeting. Needle point tip eliminates the need for pre-drilling, saving time during install. Ideal for fixing fibre cement or villa board sheeting to thin steel substrates whilst ensuring a flush finish.
Material / Coating: Zinc Yellow plated refers to the colour of the chromate that is applied after zinc has been applied. Yellow chromate increases the overall protection of the finish. The coating is intended to be used internally as it only offers an average level of protection against corrosion. If you want a fastener that will withstand the outdoor elements choose look for a Stainless steel or Galvanised fastener
What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch count ½” of an inch and multiply by 2
How to measure the length of a Timber Screw: Fastener length is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
Thread Length: have been included as a guide only. Due to stock being sourced from multiple suppliers variations do exist. We will always ship the same brand and thread length but subsequent orders may be another brand and the thread length may be different. If thread length is critical, please message us prior to ordering as we are happy to physically check our stock and advise prior to shipping
Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between packaging, visible stamped markings, thread lengths or actual finish
Photos: are of the product but may not be the actual diameter, length or thread length. Always refer to the technical specifications table for additional information prior to ordering
Updating our site: If you see any problems with any of our specifications please contact us directly
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
