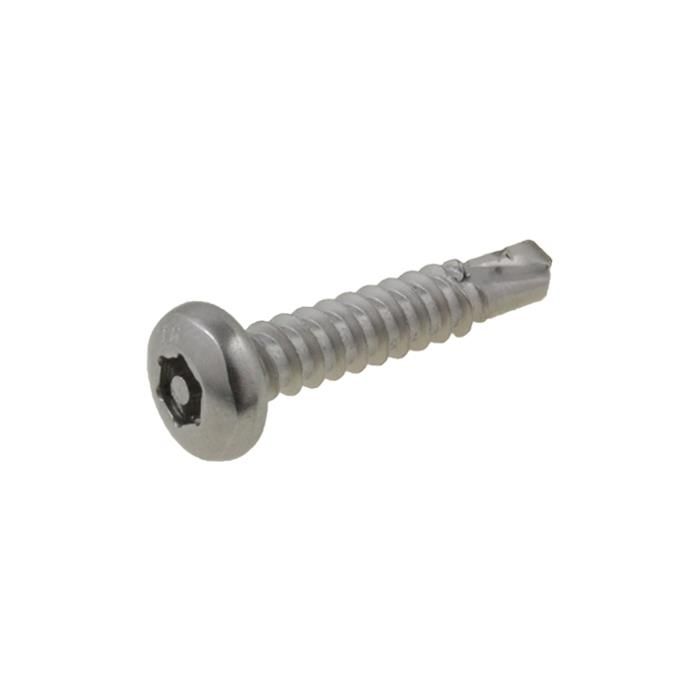

10g (4.80mm) G410 Stainless Pan Post Torx (T25) Coarse Metal Self Drilling Security Screws
Select a length below to view price
The “as low as price” is based on buying the largest pack qty and a cart value over $250
Remaining Qty:
In Stock
Sold Out
Select Add-Ons
T25 x 25mm Standard Post Torx Driver Bit ***Bundle Buy***
$3.00($3.00/ea)
T25 L Shape Post Torx Key ***Bundle Buy***
$5.00($5.00/ea)
Total amount =
Please select any of the option above and then proceed.
In Stock
Other Sizes in Range
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| System of Measurement | Screw Gauge |
|---|---|
| Product | Self Drilling Metal Screw |
| Colour | Stainless |
| Head Type | Pan Head |
| Size | 10g (4.80mm) |
| Thread Pitch | 16 TPI |
| Thread | Coarse |
| Thread Direction | Right Hand |
| Corrosion Protection Level | Moderate |
| Internal or External | External |
| Class Grade | G410 |
| Material | Stainless Steel |
| Product Diameter (d) | 4.65 - 4.80mm |
| Head Diameter (a) | 9.15 - 9.30mm |
| Screw Length (l) | Length measurement is from under head to end of drill point |
| Head Height (h) | 3.10mm |
| Drill Point Length (p) | 6.10mm |
| Min to Max Steel Thickness | 1.20 - 3.00mm |
| Are they Magnetised? | Yes |
| Drive Size (as) | T25 |
| Screw Point | Drill Point |
| Drive Type | Post (Pin) Torx |
| Single Shear (kN) | 6.3 |
| Axial Tensile (kN) | 11.1 |
| Torsional (Nm) | 8.3 |
| Recommended Drill Speed | 2500 rpm |
| Closest size in mm | 4.80mm |
| Closest size in imperial | 0.19" |
| Installation | For best results install using a DRILL driver. IMPACT drills are often too POWERFUL |
| Brand | Tower |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- Pan Head Security Screws are a tamper resistant self drilling screw designed to be used into metal. It has a Post Torx drive which is extremely difficult to install and remove without the matching tool. The ideal security screw to protect and prevent unauthorised removal. Post Torx Drive is a five lobe design with a solid post (pin) in the centre of the recess to provide increased resistance to tampering. Commonly used to when fixing into metal.
- Installation: Easy to install with a T25 Post Torx insert or power driver bit using a drill driver at a MAX speed of 2500. Whilst we know in most instances using an IMPACT driver does work it is recommended NOT to use an IMPACT driver due to the power, speed and drilling nature and action of an Impact drill.
- Material / Coating: Excellent grade for self-drillng screws due to its hardness. It is a magnetic stainless steel, hardened by heat treatment (which grades G304 and G316 cannot be). For this reason, it has excellent drilling properties – however G410 has lower corrosion resistance than G304 and G316 and should not be used in highly or even moderately corrosive environments or tea-staining will result
- What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch measure ½” of an inch and multiply the number you counted by 2
- Length of Thread: Always choose a self driller with enough threads to fully engage in the base metal. For attachments to 1/4" base steel, a self-drilling screw should have at least 1/4" of threads. It is helpful, but not critical, that the threads also engage in the material being fastened. The head of the fastener provides the bearing force for the material being fastened, while the threads provide the clamping force in the base material
- Drill Point Style: A twist drill style hardened point for fast driving into light gauge sheeting, cladding panels, sections and assemblies. The length of the drilling flutes determine the amount of drilling swaft that can be expelled and therefore the depth of metal can be drilled
- Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, length, width, head style, visible stamped markings, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, length, thread length, colour you require, always refer to the size in the description and additional specifications data provided prior to ordering
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Buy with confidence: ⇒ 13+ years experience selling online, > 23,000 stock lines, > 130 million pieces ex stock in Brisbane QLD
- Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
