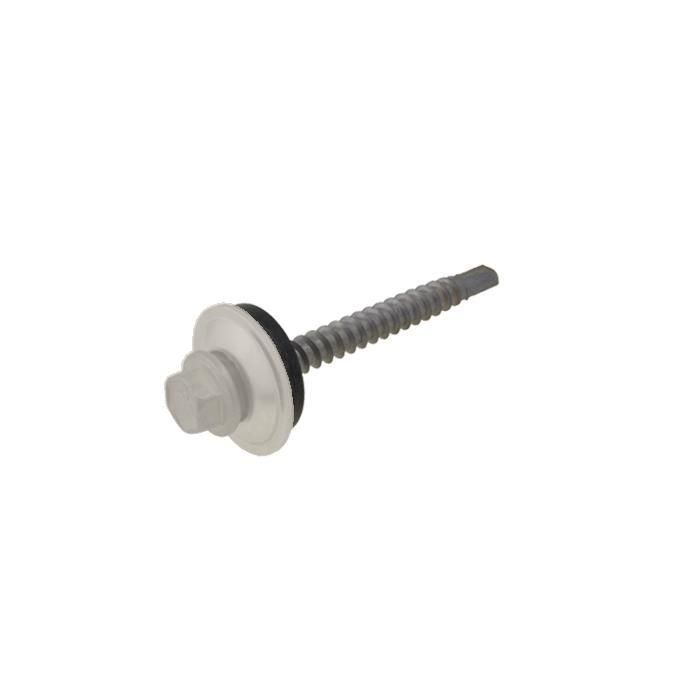

14g (6.30mm) x 53mm Full Thread Dune Cyclone BRA / Multiseal Hex Flange (3/8") Metal Roofing Screw Galvanised

As low as $0.340 /each

The “as low as price” is based on buying the largest pack qty and a cart value over $250

BUY MORE. SAVE MORE.
	Price for each item	Subtotal	% savings
Buy 5 +	Buy 5 - 9	$3.60 each	$18.00	80.00%
Buy 10 +	Buy 10 - 19	$2.50 each	$25.00	30.56%
Buy 20 +	Buy 20 - 49	$1.80 each	$36.00	28.00%
Buy 50 +	Buy 50 - 99	$1.00 each	$50.00	44.44%
Buy 100 +	Buy 100 - 199	$0.80 each	$80.00	20.00%
Buy 200 +	Buy 200 - 499	$0.70 each	$140.00	12.50%
Buy 500 +	Buy 500 - 999	$0.55 each	$275.00	21.43%
Buy 1000 +	Buy 1000 - 2999	$0.48 each	$480.00	12.73%
Buy 3000 +	Buy 3000 - 5999	$0.43 each	$1,290.00	10.42%
Buy 6000 +	Buy 6000 +	$0.40 each	$2,400.00	6.98%
Savings % based on buy qty vs previous buy qty
Show % Savings

SKU: 08CY141053C4BRADU

In Stock

Select Add-Ons

3/8" x 65mm Alpha ThunderMAX Impact Nutsetter Driver Bit ***Bundle Buy***

$10.00($10.00/ea)

Handipak of 5 - 3/8" x 65mm Alpha ThunderMAX Impact Nutsetter Driver Bit ***Bundle Buy***

$35.00($35.00/ea)

Total amount =

Please select any of the option above and then proceed.

SKU: 08CY141053C4BRADU

In Stock

Other Sizes in Range

14g x 65mm Dune

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Matching Parts

Technical Specifications

Specs - Painted Cyclone Roofing Hex Metal Self Drilling Screw Galvanised.pdf Hobson Screw Guide.pdf

More Information
System of Measurement	Screw Gauge
Product	Self Drilling Metal Screw
Heads Painted	Yes
Colour	Dune / Birch / Grey
Head Type	Hex Flange Head
Size	14g (6.30mm)
Thread Pitch	10 TPI
Thread	Coarse
Thread Direction	Right Hand
Corrosion Protection Level	Excellent
Internal or External	External
Class Grade	Class 4 / B8® Cat 5
Material	Hardened Steel
Finish	Galvanised
Length (l)	53mm
NEO Sealing Washer	Large Cyclone Washer
Product Diameter (d)	6.20 - 6.40mm
Head Diameter (a)	24.50 - 25.50mm
Screw Length (l)	Length measurement is from under head to end of drill point
Head Height (h)	6.40mm
Drill Point Length (p)	8.80mm
Min to Max Steel Thickness	1.20 - 5.00mm
Drive Size (as)	3/8"
Screw Point	Drill Point
Drive Type	Hex
Single Shear (kN)	11.1
Axial Tensile (kN)	20.3
Torsional (Nm)	20.8
Closest size in mm	6.30mm
Closest size in imperial	0.25"
Standard Made To	AS3566
Alternative Brands	Hobson Engineering

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Building code approved Cyclone Rated Metal Screws are suitable in Australia’s most severe cyclonic regions. Ideal for fastening metal roof sheets to metal battens in areas with cyclonic, or high wind conditions that need to withstand extreme wind and vibrational loads. Preassembled with a 25mm BRA plate washer (also known as Multiseal washer) to help prevent water entry and give better load
Colorbond Painted Head: The head and washer are painted to match to the range of Colorbond® colours.
Material / Coating: Galvanised coated fasteners have been used for roofing and cladding for over 150 years. Since galvanising was first introduced, we have seen a lot of new terms like Class 3, Class 4, B8, Climaseal 3, Climaseal 4, Climaseal 5, Armour Ceramic Coating, Mechanical Galvanised and Ruspert. They are all variations of the original galvanise. All self drilling and timber T17 screws from Bolt and Nut Australia are guaranteed to comply to a minimum of Class 4 and the ultimate of protection B8. Please refer to our technical pages for more information or contact us for advice on choosing the right fastener
What does TPI stand for?: TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, count the number of threads contained within an inch of length on the fastener. If the screw is less than an inch count ½” of an inch and multiply by 2
Length of Thread: Always choose a self driller with enough threads to fully engage in the base metal. For attachments to 1/4" base steel, a self-drilling screw should have at least 1/4" of threads. It is helpful, but not critical, that the threads also engage in the material being fastened. The head of the fastener provides the bearing force for the material being fastened, while the threads provide the clamping force in the base material
Need a Driver Bit?: A large range of suitable driver bits are available in the "Driving" section of our website
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
Photos: are of the product but may not be the actual diameter, length, thread length, colour you require, always refer to the size in the description and additional specifications data provided prior to ordering
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
