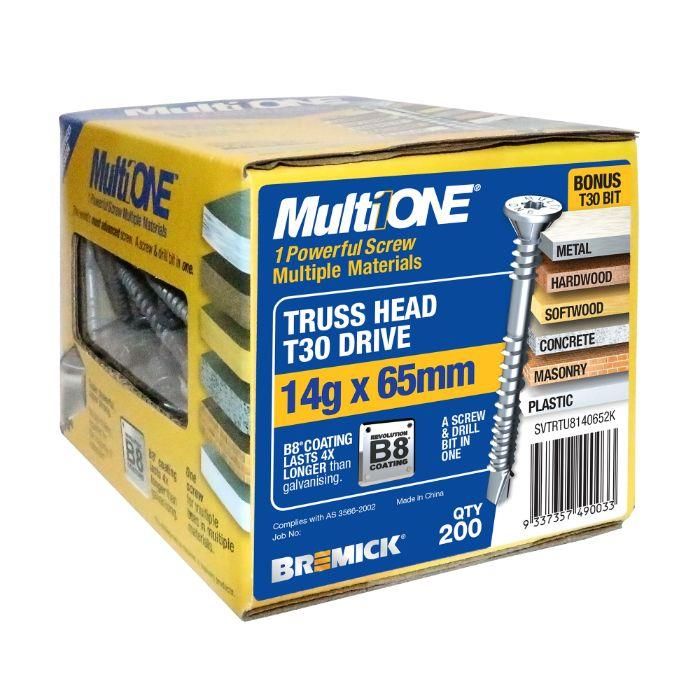

14g (6.3mm) x 65mm B8® Bremick MultiONE™ Countersunk Truss Torx (T30) Multi Screws Treated Pine

Select a length below to view price

The “as low as price” is based on buying the largest pack qty and a cart value over $250

Remaining Qty:

In Stock

Sold Out

Select Add-Ons

T30 x 50mm Bremick Torx Power Torsion Driver Bit ***Bundle Buy***

$7.00($7.00/ea)

T30 x 75mm Bremick Torx Power Torsion Driver Bit ***Bundle Buy***

$8.00($8.00/ea)

Total amount =

Please select any of the option above and then proceed.

In Stock

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Matching Parts

Technical Specifications

Specs - Bremick MultiONE Countersunk Torx Revolution B8 Coating.pdf Bremick MultiONE.pdf Bremick B8 Coating.pdf

More Information
System of Measurement	Screw Gauge
Product	Bremick MultiONE®
Head Type	Countersunk Head Ribbed
Nibbed	Slightly Nibbed
Underside of Head	Self Countersinking
Size	14g (6.30mm)
Thread	Coarse
Thread Direction	Right Hand
Corrosion Protection Level	Ultimate
Internal or External	External
Class Grade	B8® Cat 5
Material	Hardened Steel
Finish	Revolution B8® Coating
Product Diameter (d)	6.20 - 6.40mm
Head Diameter (a)	10.77mm
Screw Length (l)	Overall length measurement includes head, thread and drill point
Thread Length Max (t)	44.00mm
Head Height (h)	5.40mm
Drill Point Length (p)	5.30mm
Drive Size (as)	T30
Screw Point	Multi Purpose High Tech Drill Tip
Drive Type	Torx
Driver Bit Included	Yes
Driver Bits	We recommend using the driver bit supplied for this product range
Single Shear (kN)	11.1
Axial Tensile (kN)	20.3
Torsional (Nm)	20.8
Recommended Drill Speed	Refer installation guide
Closest size in mm	6.30mm
Material Application	Can be used on a huge range of materials
Installation	Refer installation guide
Standard Made To	AS3566
Brand	Bremick Fasteners

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Bremick MultiONE™ Countersunk Head Screws designed to fasten into Softwood, Hardwood, Treated Timbers, Composite Boards, Laminated Boards, Brick, Block, Concrete (predrilling is required) & Various Metals. It is the ultimate fastening solution for any job site applications & project
User Installation Guide and Videos: Please refer to the installation guide PDF and Videos designed to help you get the most of the world's best fastener
Features / Benefits:
- The widest range of materials can be drilled using just one screw
- Unique Thread Design engineered to fasten multiple materials with ease
- Torx compatible drive for positive bit engagement provides maximum application of torque
- TopGRIP™ thread locks materials together
- High Tech Drill Tip drills a perfect size hole for the screw making it super powerful, super strong
- Revolution B8 coating lasts 4x longer than Galvanising
Material / Coating:
- Revolution™ Bremicks B8 coating lasts 4x longer than Galvanising
- Twice the corrosion protection of Class 4 and 8x the hardness of Class 4 coating
- Drills 28% faster than conventional Class 4 coating
- Smoother, finer & matched to ZINCALUME®
- Warrantied for category 5 environments
How to determine the length: Fastener length is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
Thread Length: Data has been provided to be used as a guide only. If thread length is critical, please message us prior to ordering as we are happy to physically check our stock and advise prior to shipping
Driver Bit: Due to the unique nature of the drive and driver bit, for best results we recommend only using Bremick driver bits. There is 1x bit per box supplied. You can buy additional Bremick driver bits in our "Driving" section of our webiste
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Differences may exist between packaging, visible stamped markings, thread lengths or actual finish
Photos: Are of the product but may not be the actual diameter, length or thread length. Always refer to the technical specifications table for additional information prior to ordering
Updating our site: If you see any problems with any of our specifications please contact us directly
Buy with confidence: ⇒ 11+ years experience selling online, > 22,000 stock lines, > 100 million pieces ex stock in Brisbane QLD
Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
