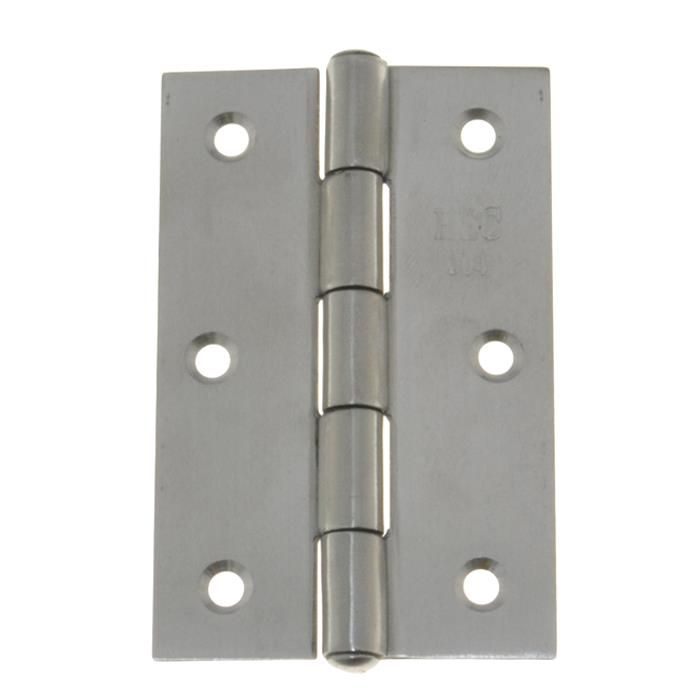

75mm x 50mm x 1.5mm Stainless A2-70 G304 Fixed Pin Hinges - Sold as a Pair
As low as
$4.675
/each
The “as low as price” is based on buying the largest pack qty and a cart value over $250
| BUY MORE. SAVE MORE. | ||||
|---|---|---|---|---|
| Price for each item | Subtotal | % savings | ||
| Buy 1 | Buy 1 | $11.00 each | $11.00 | - |
| Buy 2 + | Buy 2 - 4 | $10.50 each | $21.00 | 4.55% |
| Buy 5 + | Buy 5 - 9 | $10.00 each | $50.00 | 4.76% |
| Buy 10 + | Buy 10 - 19 | $9.00 each | $90.00 | 10.00% |
| Buy 20 + | Buy 20 - 29 | $8.00 each | $160.00 | 11.11% |
| Buy 30 + | Buy 30 - 49 | $7.00 each | $210.00 | 12.50% |
| Buy 50 + | Buy 50 - 99 | $6.50 each | $325.00 | 7.14% |
| Buy 100 + | Buy 100 - 299 | $6.00 each | $600.00 | 7.69% |
| Buy 300 + | Buy 300 - 499 | $5.75 each | $1,725.00 | 4.17% |
| Buy 500 + | Buy 500 + | $5.50 each | $2,750.00 | 4.35% |
|
Savings % based on buy qty vs previous buy qty |
||||
| Show % Savings | ||||
SKU: 62BHS7550FP
In Stock
Other Sizes in Range
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
| System of Measurement | Metric |
|---|---|
| Product | Fixed Pin Hinge |
| Size | 75mm x 50mm (6 hole) |
| Corrosion Protection Level | Excellent |
| Class Grade | A2-70 G304 |
| Material | Stainless Steel |
| Pin Type | Fixed Pin |
| Pin Diameter (p) | 7.46mm |
| Length (l1) | 75mm |
| Open Width (w) | 50mm |
| Width of Each Length (lf) | 20mm |
| Leaf Thickness (t) | 1.50mm |
| No of Holes Per Leaf | 3 |
| Hole to edge (d) | 9.00mm |
| Hole to Edge (c) | 9.21mm |
| Countersunk Screws Included | 6g x 3/4 |
| Closest size in imperial | 3" |
| Brand | Hobson Engineering |
| Alternative Brands | Inox World |
Dimensional data is a guide only. Tolerance differences exist between brands and batches
- 6 Hole Fixed Pin Butt Hinges are the most common type of hinge used on interior and exterior doors of homes and offices
- Benefits / Features: Supplied as a pair and comes with screws. Heavy duty quality. The hinge consist of two (2) leaves, each with screw holes and a pin
- Difference between loose pin and fix pin hinges: Loose pin hinges allow for the door to be removed without having to unscrewing the hinge from the door. Fixed pin hinges are used for external doors and cannot be separated unless unscrewing the hinge from the door. Fixed pin hinges offer better security over a loose pin hinge
- Material / Coating: Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is aesthetically pleasing to the eye and very practical because of its excellent corrosion protection in most environments. It is highly recommended to use Stainless Steel A4-70 G316 if the product is being used within 300 metres of the coast, in the food and chemical industry or within salt spray affected areas. Most products can be identified by the following markings: A2, A2-70, 304 or G304. Stainless steels are largely non-magnetic but it is not uncommon for stainless steel fasteners to show a small degree of magnetism. This is partly due to the work-hardening of the product during the manufacturing process
- Can Stainless corrode?: Stainless steel is corrosion-resistant but not corrosion-proof and corrosion can occur if the material is installed or handled incorrectly. The use of tools and drills made from conventional steel during the installation of stainless steel fasteners may also lead to problems. Even the hardest of tools can produce debris that leaves minute steel particles on the stainless steel fastener surfaces or in pre-drilled holes. It is these particles that often rust when exposed to moisture or oxygen and can result in a stained or tarnished finish to the stainless steel material
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance or actual finish
- Photos: All photos are for illustration purpose only. Actual product or packaging may vary due to product enhancement
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Buy with confidence: ⇒ 13+ years experience selling online, > 23,000 stock lines, > 120 million pieces ex stock in Brisbane QLD
- Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
