M6 x 80mm Stainless A4-70 G316 Countersunk Torx Xbolt E1 Fire Rated ETA Approved Screwbolt Anchors
As low as
$3.060
/each
The “as low as price” is based on buying the largest pack qty and a cart value over $250
| BUY MORE. SAVE MORE. | ||||
|---|---|---|---|---|
| Price for each item | Subtotal | % savings | ||
| Buy 1 | Buy 1 | $10.00 each | $10.00 | - |
| Buy 2 + | Buy 2 - 4 | $8.00 each | $16.00 | 20.00% |
| Buy 5 + | Buy 5 - 9 | $7.00 each | $35.00 | 12.50% |
| Buy 10 + | Buy 10 - 19 | $6.40 each | $64.00 | 8.57% |
| Buy 20 + | Buy 20 - 29 | $6.20 each | $124.00 | 3.13% |
| Buy 30 + | Buy 30 - 49 | $5.80 each | $174.00 | 6.45% |
| Buy 50 + | Buy 50 - 74 | $5.40 each | $270.00 | 6.90% |
| Buy 75 + | Buy 75 - 99 | $5.20 each | $390.00 | 3.70% |
| Buy 100 + | Buy 100 - 199 | $4.80 each | $480.00 | 7.69% |
| Buy 200 + | Buy 200 - 499 | $4.40 each | $880.00 | 8.33% |
| Buy 500 + | Buy 500 - 999 | $4.00 each | $2,000.00 | 9.09% |
| Buy 1000 + | Buy 1000 + | $3.60 each | $3,600.00 | 10.00% |
|
Savings % based on buy qty vs previous buy qty |
||||
| Show % Savings | ||||
SKU: 65CSBTS680PM
In Stock
Select Add-Ons
6mm x 160mm x 100mm SDS Plus 2 Head Masonry Drill Bit ***Bundle Buy***
$8.00($8.00/ea)
Total amount =
Please select any of the option above and then proceed.
SKU: 65CSBTS680PM
In Stock
Other Sizes in Range
Free Delivery
Delivery Information
Orders under $30 (Bulky items sent as parcel for FREE)
- Aust Post UNTRACKED Letter – FREE
- Parcel – From $8
- Express – From $10
- Click and Collect – 2hrs
Orders over $30
- Parcel – FREE
- Express – From $10
- Click and Collect – 2hrs
Email Quote
To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.
Spend Discount
Upto $99
5% Off
5% Off
$100 to $249
10% Off
10% Off
Over $250
15% Off
15% Off
Matching Parts
| Product | ETA Approved Screw Anchor / Screw Bolt / Xbolt |
|---|---|
| Head Type | Countersunk Head |
| Size | M6 (6mm) |
| Anchor Length (l) | 80mm |
| Corrosion Protection Level | Ultimate |
| Internal or External | External |
| Class Grade | A4-70 G316 |
| Material | Bi-Metal Stainless |
| Thread Length (t) | Full Thread |
| Head Diameter (a) | 15.30mm |
| Head Height (h) | 5.20mm |
| Max Fast Thickness (g) | 10mm |
| Drive Size (as) | T40 |
| Drive Type | Torx |
| Drill Hole Size | 6mm |
| Drill Hole Depth | 80mm |
| Minimum Embedment Depth | 70mm |
| Minimum Hole Dia. on Fixture | 9mm |
| Closest size in imperial | 1/4" |
| Seismic Assessment | No |
| Fire Rated | Yes |
| Concrete | Cracked & Non-Cracked |
| Standard Made To | AS 5216:2018 |
| Brand | Hobson Engineering |
Dimensional data is a guide only. Tolerance differences exist between brands and batches

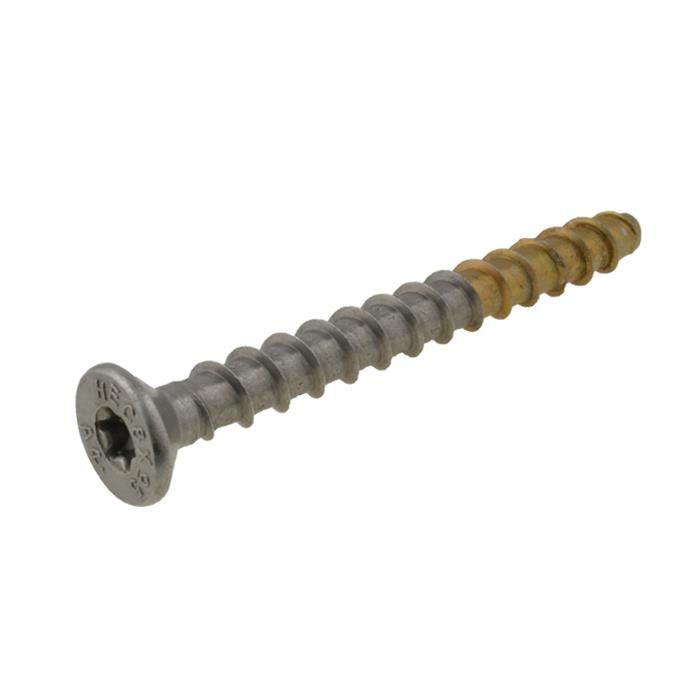

- ETA Option1 / Fire Rated Approved Bi-Metal Stainless Screwbolt Anchors are suitable for cracked and non cracked concrete. Fixing is achieved by screwing the anchor into the pre-drilled hole. As it is screwed in, it creates its own undercut by tapping the concrete hole. The cutting and locking mechanism, enables the anchor to be used in close spacing and edge distance applications.
- Features / Benefits:
- Provides the advantages and benefits of A4-70 G316 stainless plus the heat-treated alloy point
- Hardened alloy point for fast and consistent installation
- Suitable for medium to heavy loads
- Suitable for small anchor spacing and edge distance applications
- Quick and Easy to Install
- Fully Removable making it ideal for temporary applications
- Fire Rated
- Can be installed in a whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few
- Applications:
- For high corrosion resistance such as severe marine environments
- Fertilliser facilities
- Chemical and petrochemical plants
- Pharmaceutical and brewery plants
- Kitchens and food preparation
- Material / Coating: Bi-Metal Stainless Steel G316 Screw Bolt Anchors comprise of two metal types. The point is manufactured from high grade carbon steel that is heat treated to give it the ability to tap its own thread into concrete. The head section is manufactured from Stainless Steel A4-70 G316 corrosion resistant stainless steel. The two metals are "fused togther" to form a screw bolt anchor that offers excellent self tapping properties and exceptional corrosion properties
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you do see a problem please contact us
- Photos: All photos are for illustration purpose only. Actual product or packaging may vary due to product enhancement
- PDF data sheets: The attached PDF data sheets has additional technical specifications and "how to" diagrams which we find to be helpful as reference material. Although provided by one of our suppliers, the brand supplied may be different. If brand is critical, please refer to the technical specification tab to see our supplier list or contact us prior to ordering. As we are always updating and adding new lines to our site the data sheet may not include every item we stock or have items that are currently not on our site. If there is something you need and you can’t find it, please contact us for price and availability
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
- Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
