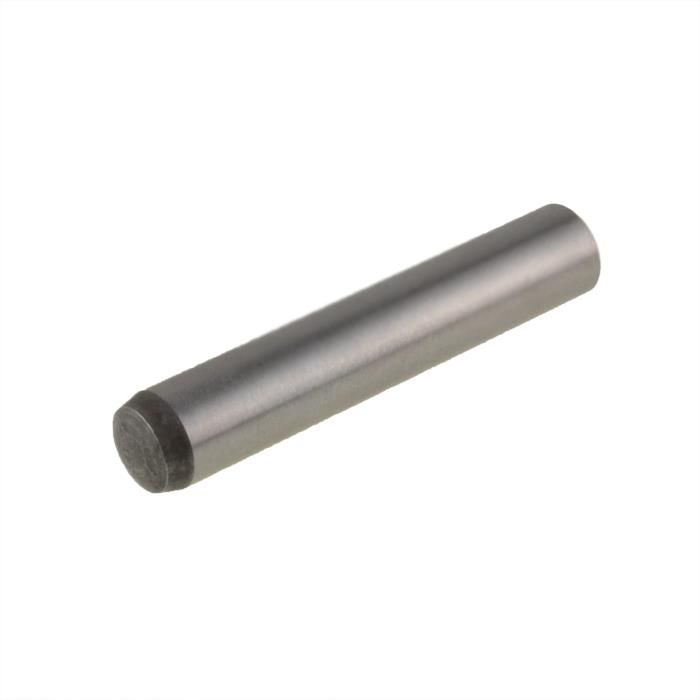

1/2" Imperial Plain Parallel Dowel Pins Hardened DIN 6325

Select a length below to view price

The “as low as price” is based on buying the largest pack qty and a cart value over $250

Remaining Qty:

In Stock

Sold Out

Length Overall

No. of Dowel Pins

Remaining Qty:

- +

Min buy qty is:

Total amount =

Spend discounts will apply once added to Cart

Other Sizes in Range

Free Delivery

Email Quote

To create a quote, add all the items to your shopping cart, go to shopping cart and click “Email as a Quote”.

Save to Wishlist

Spend Discount

Upto $99
5% Off

$100 to $249
10% Off

Over $250
15% Off

Technical Specifications

Specs - Dowel Pin Imperial Plain Black.pdf Imperial vs Metric Strength Chart.pdf

More Information
System of Measurement	Imperial
Product	Dowel Pin
Size	1/2"
Corrosion Protection Level	Low
Class Grade	High Tensile
Material	Hardened Alloy Steel
Finish	Plain Black Uncoated
Length (l)	Select from the dropdown
Dowel Pin Dia. (d)	0.5001 - 0.5003" (12.70 - 12.71mm)
Point Diameter (J)	0.471 - 0.486" (11.96 - 12.34mm)
Crown Height	0.063 - 0.167" (1.60 - 4.24mm)
Rockwell Hardness	58-62 HRC
Double Shear Load (lb)	51000
Standard Made To	DIN 6325
Brand	Brighton Best

Dimensional data is a guide only. Tolerance differences exist between brands and batches

Description

Dowel Pins are a hardened and precisely shaped pin used to keep machine components in accurate alignment, they are also used as location guides for adjacent machine parts and to keep the two sections of a punch and die in alignment. For a tight fit, your hole should be equal to or slightly smaller than the diameter shown.
Material / Coating: Black or plain finish is unfinished (bare steel) has no actual protective coating. There may be an oil residue which provides some shelf life but no real corrosion protection when in use. The term “black” is an old industry term for plain. Depending on the material grade and heat treatment process the colour can vary from a shiny oily finish to a dull black
Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as diameter, length, appearance or actual finish
Photos: All photos are for illustration purpose only. Actual product or packaging may vary due to product enhancement
Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
